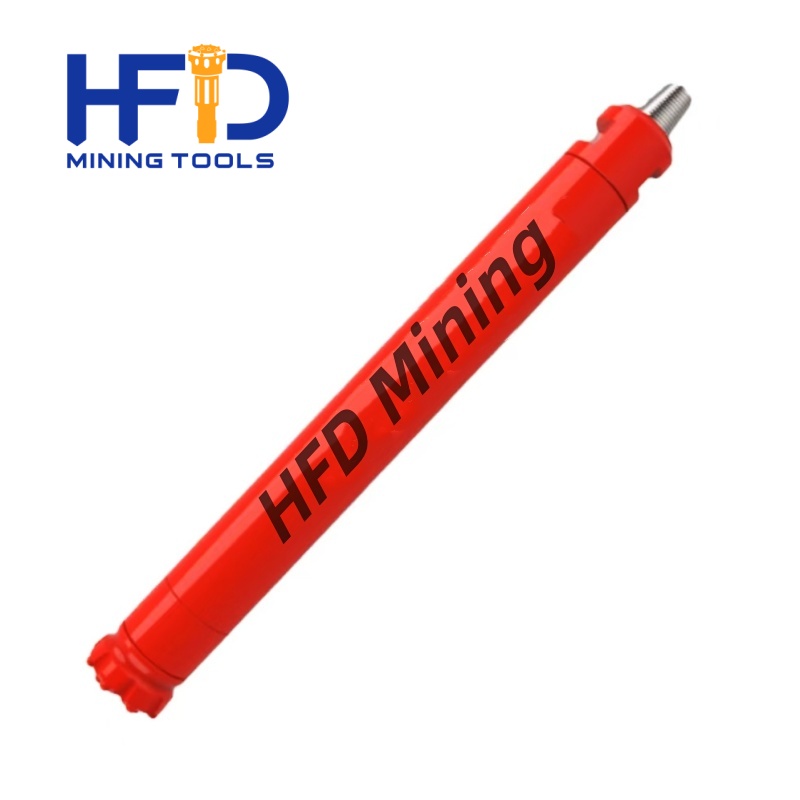

Mission Series Mission50 Hammer DTH Hammer
Application:mining, quarrying, exploration, water-well, geothermal, solar, geotechnical drillingetc.
Customisation services: Support for customisation
Package: Wood Carton
Brand：HFD
HFD's DTH Hammer Mission series is improved according to the domestic mining conditions and advanced technology from the international market. They are made of high-quality materials to ensure quality and at the same time prolong their service life. HFD is your best drilling partner!
Request a quote for detailed information (MOQ, price, delivery)
Share:
Mission Series Mission50 Hammer DTH Hammer :
HFD's Mission DTH Hammer uses the finest raw materials and advanced manufacturing processes to enable efficient energy transfer, faster drilling speeds, lower air consumption and lower fuel consumption.
They have been tried and tested in demanding applications all over the world and have received favourable comments from customers!

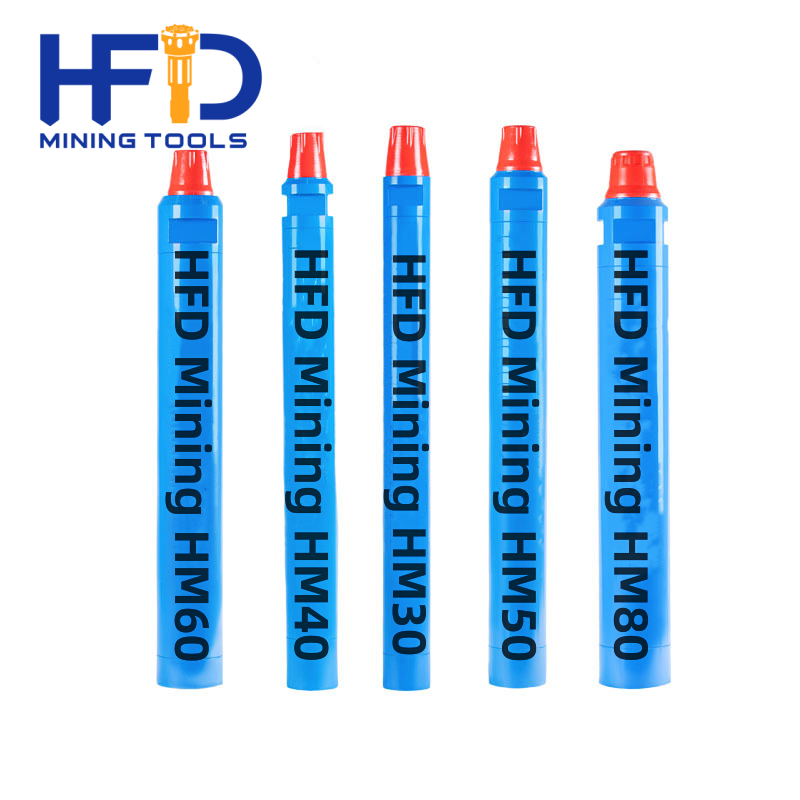

We have several series of DTH hammer types, you could consider , penetration rate, reliability, air consumption, impact power,hammer life to choose the most suitable DTH hammer.
| Technical Specification: | |||
| Length(Less bit) | 1122mm | Air Consumption | |
| Weight | 70.5kg | 1.0Mpa | 7m3/min |
| Outer diameter | Φ126mm | 1.8Mpa | 13m3/min |
| Connection Thread | API2 3/8"REG | ||
| Bit Shank | M50 | ||
| Hole Range | Φ136-Φ155mm | ||
| work pressure | 1.0-2.5Mpa | ||
| Recommended rotation speed | 30-60 r/min | ||
| |||||

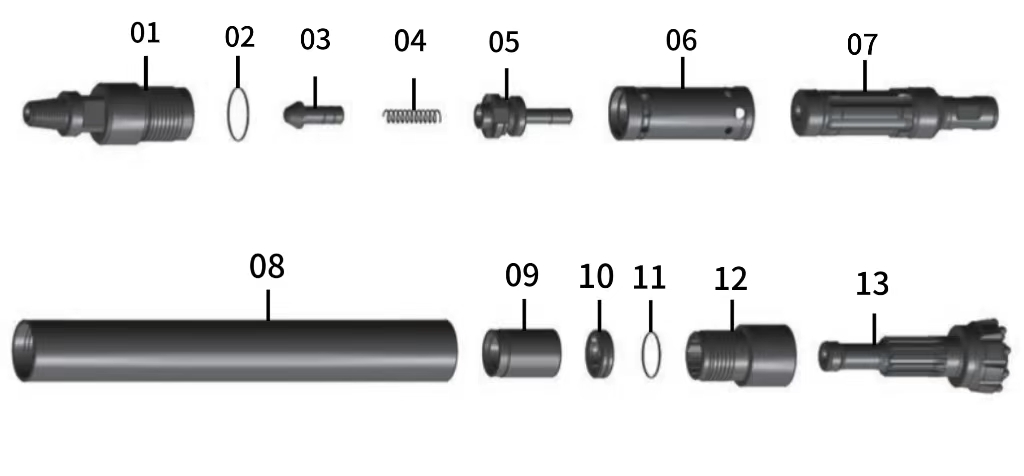

| Ref | Parts | Weight | Ref | Parts | Weight |
| 01 | Top Sub | 13.7Kg | 09 | Guide Sleeve | 12.6Kg |
| 02 | O Ring | 0.02Kg | 10 | Retainer Ring | 0.7Kg |
| 03 | Check Valve | 0.7Kg | 11 | O Ring | 0.01Kg |
| 04 | Spring | 0.1Kg | 12 | Drive Chuck | 7.1Kg |
| 05 | Valve Seat | 2Kg | 13 | Drill Bit | |
| 06 | lnner Cylinder | 2.8Kg | |||
| 07 | Piston | 15Kg | |||
| 08 | Piston Case | 24Kg | |||
What are the features of HFD's Mission DTH hammer?
1.HFD's Mission DTH hammer stands out with its unique design and construction, tailored to meet the specific needs of our customers.
2.Built with precision engineering, the HFD's Mission DTH Hammer offers a distinct approach to drilling, providing enhanced performance and reliability in various drilling conditions.
3.Through innovative design features and technological advancements, the HFD's Mission DTH Hammer offers superior penetration rates and consistent performance, even in challenging geological formations.
4.Our team works closely with customers to tailor the Mission DTH Hammer to their exact specifications, ensuring optimal performance and maximum productivity on-site.
FAQ：
1. Are you exact manufacturer or just trading company?
We are both,we have our own factory. And also have many long-relationship factories.
2.What is your minimum order quantity?
Our MOQ are 1pc or 1 complete set, the price may rely on the order quantity. We are welcome your sample order to testing our quality。
3. How about Packing
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation.
Also, we can customize package according to your special requests.
4. How about the delivery time?
It depends, generally it takes about 15-25day. If have stocks, Usually only 5-10 days if in stock.
5.How to choose the right DTH hammer ?
1).Pls show me which hole size do you want to drill.
2).Maybe you have a picture of it.
