High quality Dhd350 DTH bit

Applicable Industries:Construction works , Energy & Mining

Processing Type:Forging

Packaging Details:wooden cases

Material:Carbon steel

A DTH hammer bit, also known as a Dhd350 Dth Bit,The drill bit is made of alloy material, which has a longer service life and is higher than similar products, and the drill bit crushes the rock by impact and shear. HFD drill bits have strong wear resistance and are suitable for drilling in soft and medium hard formations, and compared with general drill bits, especially for drilling 6-8 rock forma

Request a quote for detailed information (MOQ, price, delivery)

Share:

High quality Dhd350 DTH bit :

Our DTH Bits is a high-quality and durable tool specifically designed for mining machinery. Based on previous experience of ordinary hammers,  optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling..Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.it offers superior performance and precise drilling capabilities. The button drill bits are made from diamond tools, ensuring reliability and efficiency in mining operations.

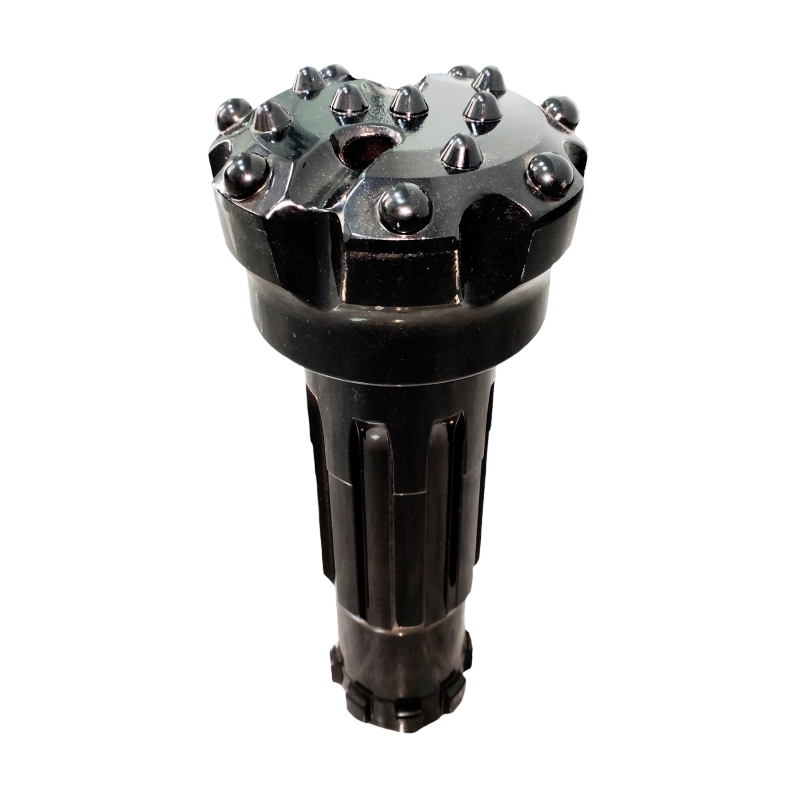

High quality Dhd350 DTH bit

    The following sizes are available for you to choose from, or to provide you with customized services

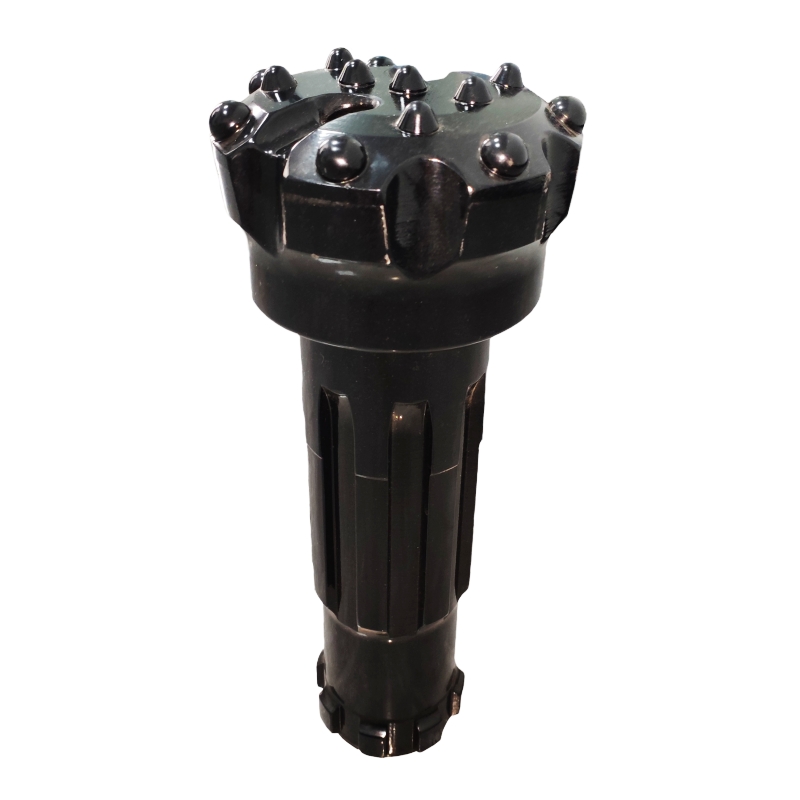

High quality Dhd350 DTH bit


Diameter


No  x Buttons diameter mm


Button

angle°


Air

holes


Weight

(Kg)


Part  No

mm

inch


Gauge


Front


138

5  1/2

7x18

7x15

38

2

15.6

HD5-138DFF7

146

5  3/4

7x18

7x15

38

2

16.5

HD5-146DFF7

152

6

8X16

8X15

38

2

17

HD5-152DFF8

165

6  1/2

8X18

8X16

38

2

18

HD5-165DFF8

178

7

8X18

10X16

38

2

21

HD5-178DFF8



Advantages of down-the-hole drill bits
The longer life of the drill: the alloy material,with longer using life which better than the similar product;

High Drilling Efficiency:    the drill buttons is wear-resistant,so that the drill can always keep sharp,thus greatly

 improving the speed of the drilling;

The drilling speed is stable:the bit is scraped and cut to break the rock;

Good performance:the HFD bits has strong wear resistace,good diameter protection and can make the

 cutting teeth be used effciently;

The use of a wide range: HFD drill bits have strong wear resistance and are suitable for drilling in soft and medium hard formations, and compared with general drill bits, especially for drilling 6-8 rock formations, the effect is particularly significant.

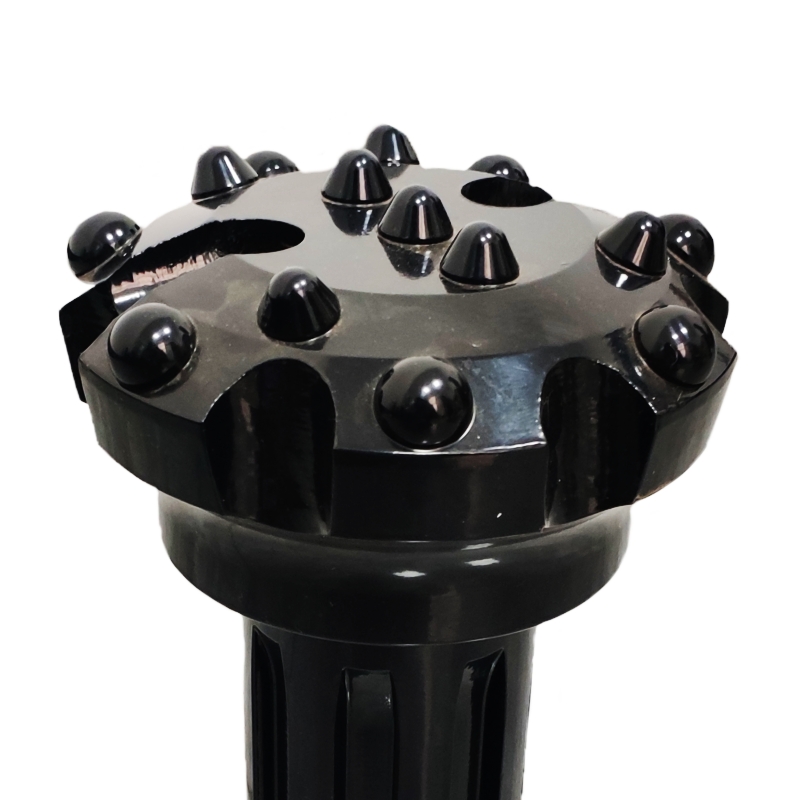

High quality Dhd350 DTH bit

High quality Dhd350 DTH bit

Why Choose HFD Down the hole bits ?

In the top hammer drilling tool manufacturing, we have world-class production technology, advanced production equipment, and experienced production technical staff. We have been working closely with our customers to conduct extensive on-site tests on various types of rocks and working conditions. Based on the feedback, we continue to improve and develop in various areas such as raw materials, heat treatment, design and manufacturing processes.



In terms of product consultation and rock tool services, we can select the most suitable rock drill tools and drilling construction schemes according to the user's construction conditions, rock type, mineral conditions and drilling equipment, so as to help users improve drilling efficiency, reduce drilling costs, and achieve better comprehensive benefits and higher labour productivity.



Our Down the hole bits have a good industry reputation in mining, tunnelling, quarrying, roads or construction due to their excellent wear resistance, roughening resistance and stability. Compared with many world-class brands of drilling tools, our rock drill tools are not inferior. In some field comparison tests, the use efficiency of our many products even exceeds that of world-class brands and has been highly recognized by customers.
