Eccentric Overburden Drilling Epuipment Casing Bit System

Type:Eccentric casing System

Processing Type:Forging

Advantage:High drilling speed

Brand: HFD Mining Tools

01 Hardening of part surfaces 02 Long service life and excellent anti-wear properties 03 Stable and reliable performance, fast drilling speed

Request a quote for detailed information (MOQ, price, delivery)

Share:

Eccentric Overburden Drilling Epuipment Casing Bit System :

Eccentric Overburden Drilling Epuipment Casing Bit System

For more specifications, please contact us and accept the customized size;

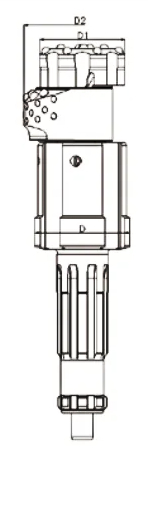

ModelCasing Tube O.DBit Diameter(Button Included)Casing Shoe I.DMaximum Reaming O.DHammer Style
Eccentric Overburden Drilling Epuipment Casing Bit System108¢108¢92¢86¢1183
114¢114¢100¢94¢1243
127¢127¢110¢102¢1363-4
146¢146¢124¢117¢1564
168¢168¢146¢138¢1785
178¢178¢156¢148¢1935
183¢183¢160¢152¢1935
194¢194¢178¢167¢2086
219¢219¢203¢193¢2376-7
245¢245¢220¢210¢2606-8
273¢273¢256¢242¢3088
325
¢325
¢297¢285¢3558-10
377¢377¢351¢333¢42010-12

Symmetric Casing Drilling System By DTH Hammer

Eccentric Overburden Drilling System


Why Choose HFD Down the hole bits ?


In the top hammer drilling tool manufacturing, we have world-class production technology, advanced production equipment, and experienced production technical staff. We have been working closely with our customers to conduct extensive on-site tests on various types of rocks and working conditions. Based on the feedback, we continue to improve and develop in various areas such as raw materials, heat treatment, design and manufacturing processes.

In terms of product consultation and rock tool services, we can select the most suitable rock drill tools and drilling construction schemes according to the user's construction conditions, rock type, mineral conditions and drilling equipment, so as to help users improve drilling efficiency, reduce drilling costs, and achieve better comprehensive benefits and higher labour productivity.

Our Down the hole bits have a good industry reputation in mining, tunnelling, quarrying, roads or construction due to their excellent wear resistance, roughening resistance and stability. Compared with many world-class brands of drilling tools, our rock drill tools are not inferior. In some field comparison tests, the use efficiency of our many products even exceeds that of world-class brands and has been highly recognized by customers.
