CIR 110 Medium to low wind pressure DTH The Hole Bit

Applicable Industries:Construction works , Energy & Mining

Processing Type:Forging

Packaging Details:wooden cases

Material:Carbon steel

HFD Drilling tool manufacturers makes and supplies the finest and most efficient Down-the-Hole (DTH) hammers and bits for the mining, construction and water well industries.

Request a quote for detailed information (MOQ, price, delivery)

Share:

CIR 110 Medium to low wind pressure DTH The Hole Bit :

CIR 110 Medium to low wind pressure DTH The Hole Bit

     The following sizes are available for you to choose from, or to provide you with customized services

CIR 110 Medium to low wind pressure DTH The Hole Bit


Diameter


No  x Buttons diameter mm


Button

angle°


Air

holes


Weight

(Kg)


Part  No

mm

inch


Gauge


Front

Drill bits for CIR110A hammers

110

4  1/3

6x14

3x13+3x12

45

3

6.0

CIR110-110FD1

120

4  3/4

6x14

3x13+4x12

45

3

6.5

CIR110-110FD2

130

5  1/8

6x14

3x13+4x12

45

3

6.9

CIR110-110FD3

140

5  1/2

9X14

3x13+5x12

45

3

8.5

CIR110-110FD4

150

6

9X14

3x13+5x12

45

3

9.1

CIR110-110FD5


Advantages of down-the-hole drill bits
The longer life of the drill: the alloy material,with longer using life which better than the similar product;

High Drilling Efficiency:    the buttons bit is wear-resistant,so that the drill can always keep sharp,thus greatly

 improving the speed of the drilling;

The drilling speed is stable:the bit is scraped and cut to break the rock;

Good performance:the HFD bits has strong wear resistace,good diameter protection and can make the

 cutting teeth be used effciently;

The use of a wide range: HFD drill bits have strong wear resistance and are suitable for drilling in soft and medium hard formations, and compared with general drill bits, especially for drilling 6-8 rock formations, the effect is particularly significant.

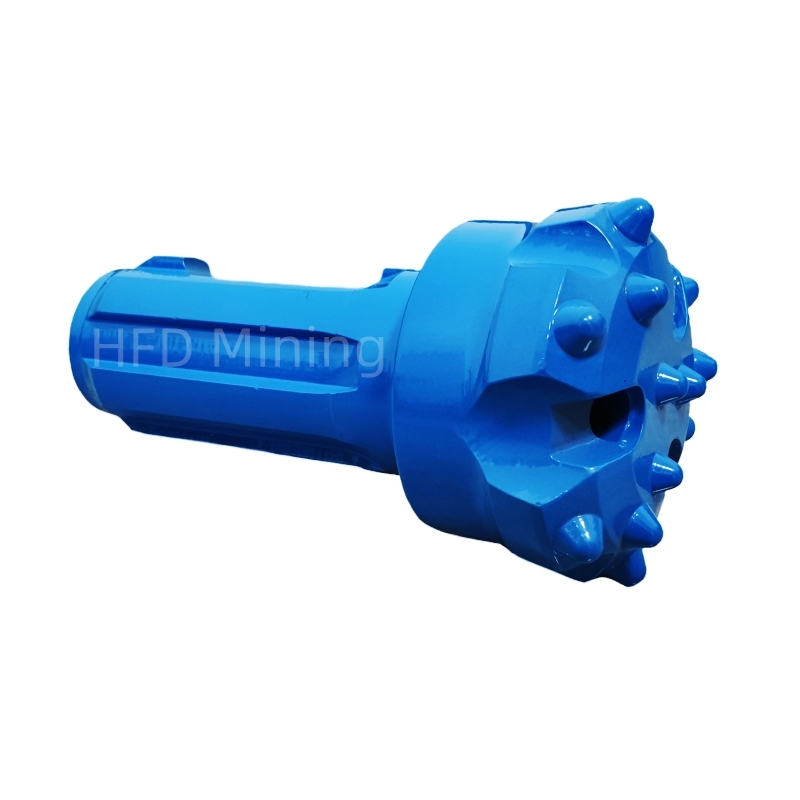

High quality Dhd350 DTH bit

High quality Dhd350 DTH bit

Why Choose HFD Down the hole bits ?

In the top hammer drilling tool manufacturing, we have world-class production technology, advanced production equipment, and experienced production technical staff. We have been working closely with our customers to conduct extensive on-site tests on various types of rocks and working conditions. Based on the feedback, we continue to improve and develop in various areas such as raw materials, heat treatment, design and manufacturing processes.



In terms of product consultation and rock tool services, we can select the most suitable rock drill tools and drilling construction schemes according to the user's construction conditions, rock type, mineral conditions and drilling equipment, so as to help users improve drilling efficiency, reduce drilling costs, and achieve better comprehensive benefits and higher labour productivity.



Our Down the hole bits have a good industry reputation in mining, tunnelling, quarrying, roads or construction due to their excellent wear resistance, roughening resistance and stability. Compared with many world-class brands of drilling tools, our rock drill tools are not inferior. In some field comparison tests, the use efficiency of our many products even exceeds that of world-class brands and has been highly recognized by customers.


Service & Support

Every purchase comes with round-the-clock after-sales service, support, and training to ensure customers get maximum productivity from their drilling operations. Having a knowledgeable and technical partner, on-site or online, can make the difference between going it alone and leveraging experience and expertise. Customers can rely on our service and support, which are provided by cost-effective and professional DTH drilling tool manufacturers. We know about downhole drilling!
