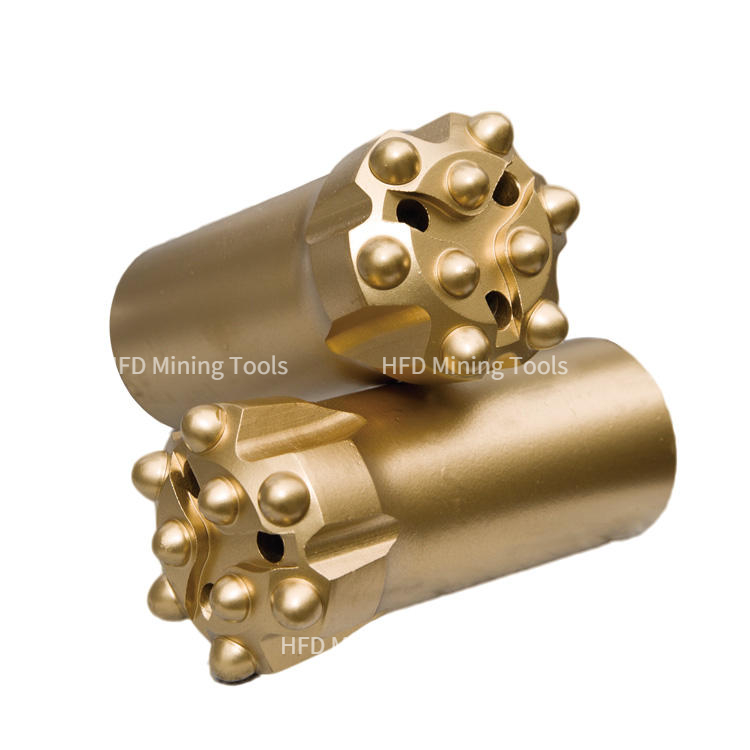

R32 Threaded Rock Drill Button Bit
Application:granite marble sandstone quarry and mining
type:standard retrac thread button bit
Material: Tungsten Carbide
Brand: HFD Mining Tools

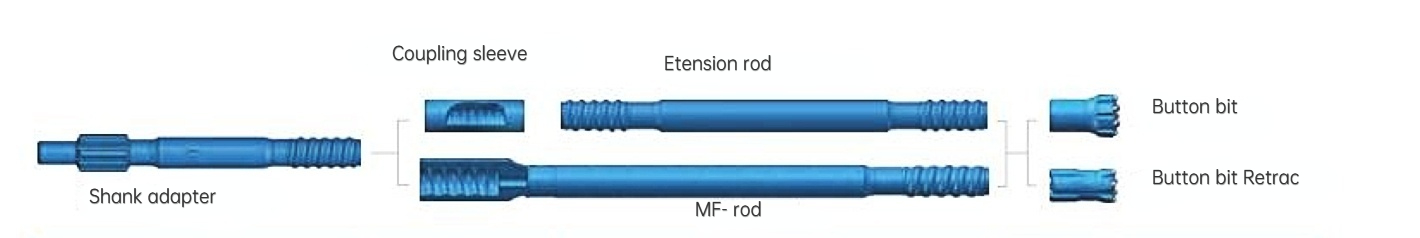

In top hammer threaded drilling tools, standard threaded button bit is the most widely used drill bit,R25,R28 And R32 Bit,Rods And Shank Adapter for Drifting And Tunneling Drilling,We provide the solution to optimized the performance and cost for difference rock conditions.
Request a quote for detailed information (MOQ, price, delivery)
Share:
R32 Threaded Rock Drill Button Bit :
R32 threaded drill head
The following sizes are available for you to choose from, or to provide you with customized services
 | ||||||||
Diameter | No x Buttons diameter mm | Button angle° | flushing holes | Weight (Kg) | Part No | |||
mm | inch | Gauge | Front | Side | Front | |||
R32（11/8’’）BUTTON BIT-（Spherical buttons& Ballistic buttons） | ||||||||
45 | 13∕4 | 5×9 | 2×8 | 30° | 1 | 1 | 0.8 | GD45-R32PFF5N |
45 | 13∕4 | 6×9 | 3×8 | 35° | 1 | 3 | 0.8 | GD45-R32PFF6N |
48 | 17∕8 | 5×10 | 2×9 | 35° | 2 | 1 | 0.8 | GD48-R32PFF5N |
48 | 17∕8 | 6×9 | 3×8 | 35° | 1 | 3 | 0.9 | GD48-R32PFF6N |
51 | 2 | 5×11 | 2×11 | 35° | 2 | 1 | 0.9 | GD51-R32PFF5N |
51 | 2 | 6×10 | 3×9 | 35° | 1 | 3 | 1.1 | GD51-R32PFF6N |
57 | 21∕4 | 6×11 | 3×9 | 35° | 1 | 3 | 1.1 | GD57-R32PFF6N |
57 | 21∕4 | 6×11 | 3×9 | 35° | 1 | 3 | 1.5 | GD57-R32PFF6N |
64 | 2 1∕2 | 8×10 | 4×10 | 35° | 1 | 2 | 1.5 | GD64-R32PFF8N |
64 | 2 1∕2 | 6×10 | 3×10 1×10 | 35° | - | 3 | 2.2 | GD64-R32PCC6R |
76 | 3 | 8×11 | 4×11 | 35° | 1 | 2 | 1.8 | GD76-R32PFF8N |
76 | 3 | 8×11 | 4×11 1×11 | 35° | - | 4 | 3.4 | GD76-R32PCC8R |
| Key features |
| ▲tapered button bitis a type of drill bit used in rock drilling and mining operations. It is designed with a tapered shape that allows it to easily penetrate through hard rock formations. |
▲Top hammer drilling is made of quality steel and premium carbode grades. |
| ▲Process using equipment ensure the accuracy and quality of each bit. |
▲Provide difference designs to make the bit achieved the best rate of bit life and penetration rate to reduce the cost permeter. |
Why Choose HFD Down the hole bits ?
In the top hammer drilling tool manufacturing, we have world-class production technology, advanced production equipment, and experienced production technical staff. We have been working closely with our customers to conduct extensive on-site tests on various types of rocks and working conditions. Based on the feedback, we continue to improve and develop in various areas such as raw materials, heat treatment, design and manufacturing processes.
In terms of product consultation and rock tool services, we can select the most suitable rock drill tools and drilling construction schemes according to the user's construction conditions, rock type, mineral conditions and drilling equipment, so as to help users improve drilling efficiency, reduce drilling costs, and achieve better comprehensive benefits and higher labour productivity.
Our Down the hole bits have a good industry reputation in mining, tunnelling, quarrying, roads or construction due to their excellent wear resistance, roughening resistance and stability. Compared with many world-class brands of drilling tools, our rock drill tools are not inferior. In some field comparison tests, the use efficiency of our many products even exceeds that of world-class brands and has been highly recognized by customers.
Service & Support
Every purchase comes with round-the-clock after-sales service, support, and training to ensure customers get maximum productivity from their drilling operations. Having a knowledgeable and technical partner, on-site or online, can make the difference between going it alone and leveraging experience and expertise. Customers can rely on our service and support, which are provided by cost-effective and professional DTH drilling tool manufacturers. We know about downhole drilling!
