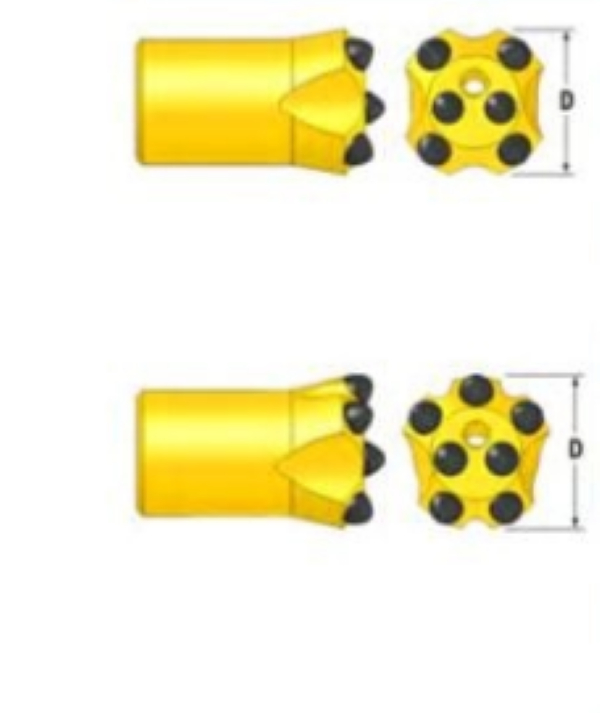

R38 Thread Button Bit Drill Bit

Application:granite marble sandstone quarry and mining

type:standard retrac thread button bit

Material: Tungsten Carbide

Brand: HFD Mining Tools

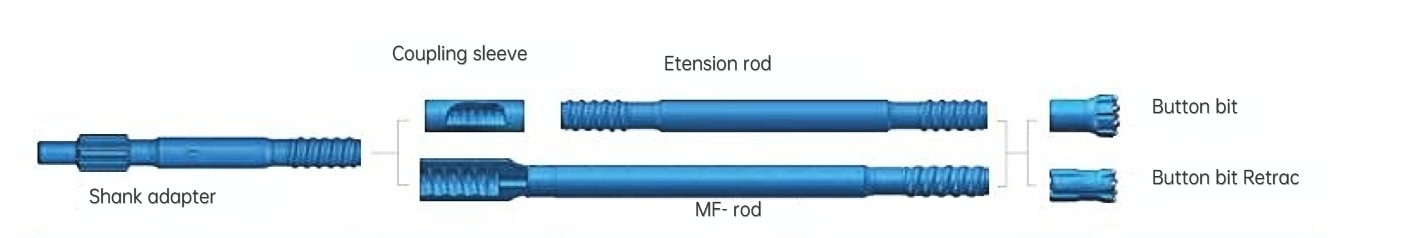

In top hammer threaded drilling tools, standard threaded button bit is the most widely used drill bit,R25,R28 And R32 Bit,Rods And Shank Adapter for Drifting And Tunneling Drilling,We provide the solution to optimized the performance and cost for difference rock conditions.

Request a quote for detailed information (MOQ, price, delivery)

Share:

R38 Thread Button Bit Drill Bit :

The following sizes are available for you to choose from, or to provide you with customized services

 R38 Thread Button Bit Drill Bit R38 Thread Button Bit Drill Bit

Diameter



No x Buttons diameter mm

Buttonangle°

flushing holes

Weight(Kg)

Part No
mminchGauge
FrontSideFront
R38(11/2’’)BUTTON BIT-(Spherical  buttons& Ballistic  buttons)
642 1∕28×104×1035°121.7HD64-R38PFF8N
7638×114×1135°122.6HD76-R38PFF8N


Key  features
tapered button bit is a type of drill bit used in rock drilling and mining operations. It is designed with a tapered shape that allows it to easily penetrate through hard rock formations.

Top hammer drilling  is made of quality steel and premium carbode grades.

Process using equipment ensure the accuracy and quality of each bit.

Provide difference designs to make the bit achieved the best rate of bit life and penetration rate to reduce the cost permeter.


High quality Dhd350 DTH bit

High quality Dhd350 DTH bit

Why Choose HFD Down the hole bits ?

In the top hammer drilling tool manufacturing, we have world-class production technology, advanced production equipment, and experienced production technical staff. We have been working closely with our customers to conduct extensive on-site tests on various types of rocks and working conditions. Based on the feedback, we continue to improve and develop in various areas such as raw materials, heat treatment, design and manufacturing processes.



In terms of product consultation and rock tool services, we can select the most suitable rock drill tools and drilling construction schemes according to the user's construction conditions, rock type, mineral conditions and drilling equipment, so as to help users improve drilling efficiency, reduce drilling costs, and achieve better comprehensive benefits and higher labour productivity.



Our Down the hole bits have a good industry reputation in mining, tunnelling, quarrying, roads or construction due to their excellent wear resistance, roughening resistance and stability. Compared with many world-class brands of drilling tools, our rock drill tools are not inferior. In some field comparison tests, the use efficiency of our many products even exceeds that of world-class brands and has been highly recognized by customers.
