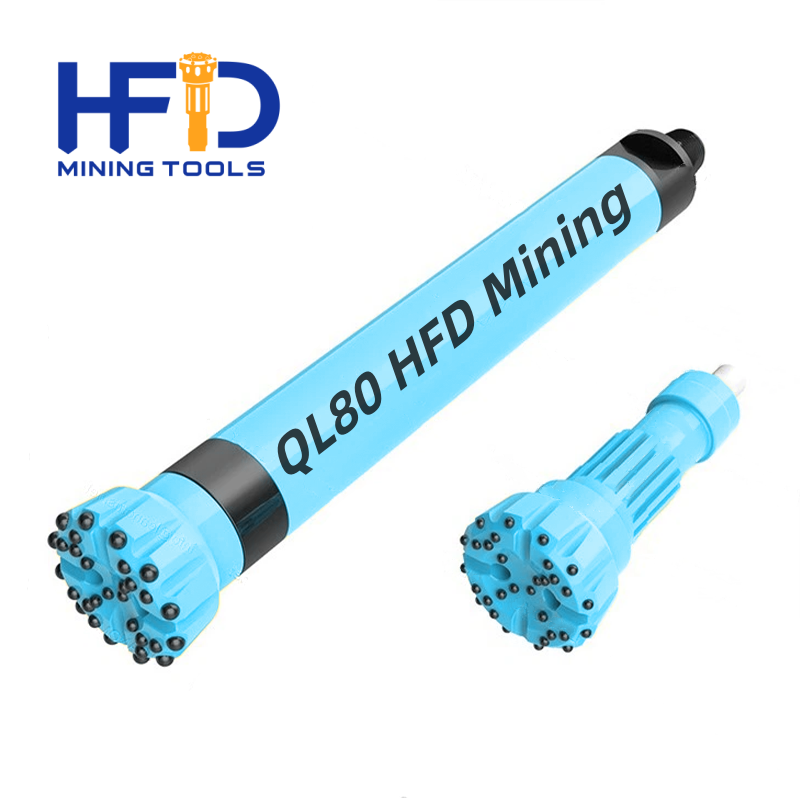

Eketsa Lebelo la Hao la ho Cheka ka QL DTH Hammer QL80

Kopo: Merafo, kaho, ho cheka, ho cheka, ho cheka, ho hlahloba khase, joalo-joalo.

Litšebeletso tsa Customization: Tšehetso bakeng sa ho itloaetsa

Sephutheloana: Lebokose la Lehong

Lebitso: HFD

HFD's QL DTH Hammer e fana ka ts'ebetso e tšepahalang le maemong a thata ka ho fetesisa a ho cheka. Basebelisi ba ka tšepa boenjiniere ba eona bo nepahetseng le ho tšoarella ho netefalitsoeng ho sebetsana le dril efe kapa efe.

Kopa qotso bakeng sa tlhaiso-leseling e batsi (MOQ, theko, thomello)

Arolelana:

Eketsa Lebelo la Hao la ho Cheka ka QL DTH Hammer QL80 :

HFD's QL letoto la DTH Hammer e netefalitsoeng le ho ts'epahala e e etsa khetho e ntle ka ho fetisisa bakeng sa ho cheka Liliba, ho phenyekolla oli le khase, masoba a phatlohileng likoring le mosebetsi oa kaho.

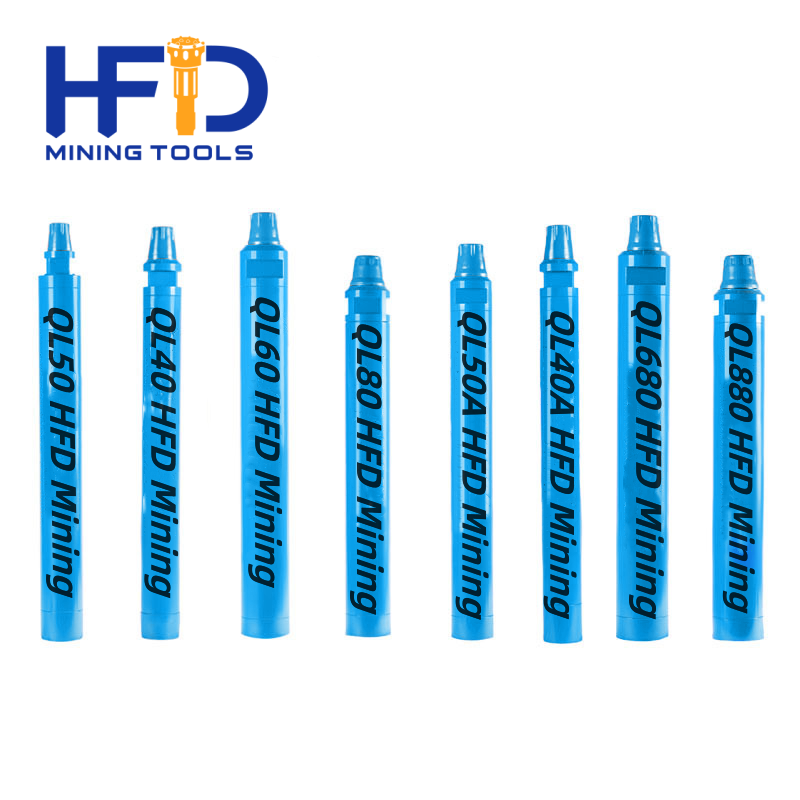

Re na le mefuta e 'maloa ea mefuta ea hamore ea DTH, eo u ka e nahanang, sekhahla sa ho kenella, ho ts'epahala, ts'ebeliso ea moea, matla a tšusumetso, bophelo ba hamore ho khetha hamore e loketseng ka ho fetisisa ea DTH.

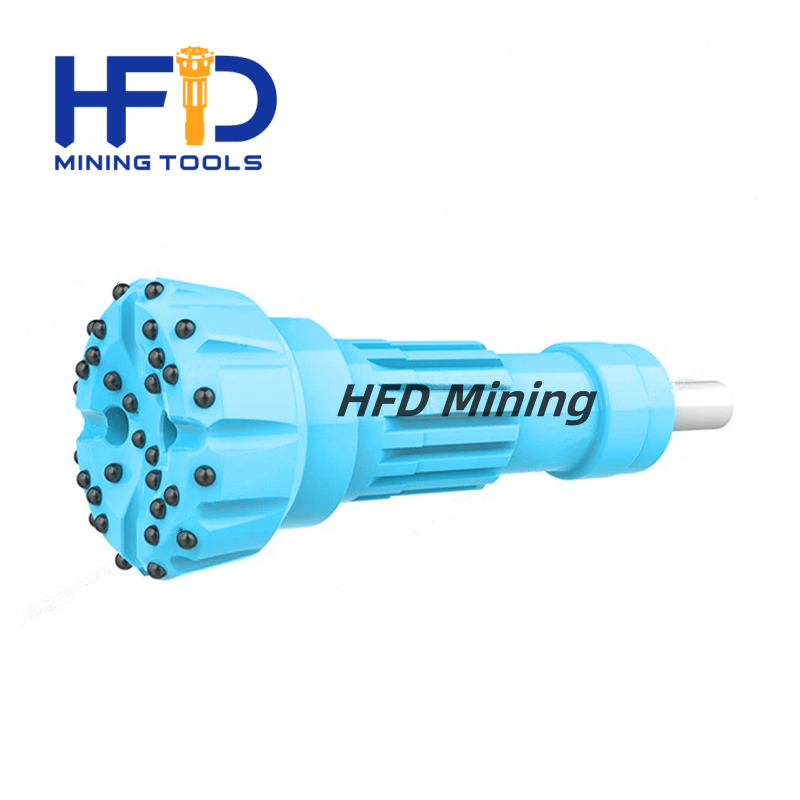

Lintlha tse Khethehilengion:			Tlhaloso ea Bit:
Bolelele (Bonyane hanyane)		1471mm
Boima ba 'mele		187kg
Bophara ba kantle		Φ180mm
Khoele ea Khokelo		API4 1/2"REG
Bit Shank		QL80
Hole Range		Φ195-Φ254mm
khatello ea mosebetsi		1.5-3.3Mpa	Li-splines	16
Lebelo la ho potoloha le khothalelitsoeng		30-60 r/min	Bolelele ba Shank	331
Tšebeliso ea Moea			Bit Shank	QL80
1.8Mpa	26m3/min		Bophara ba Hlooho(mm)	Φ203-Φ305
2.4Mpa	34m3/min		Boima ba 'mele	48.2kg-77.3kg

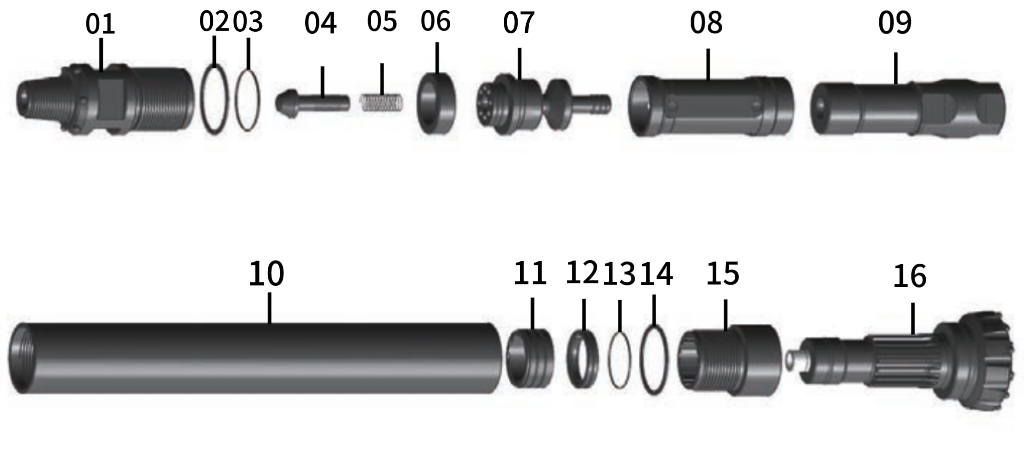

Ref	Likarolo	Boima ba 'mele	Ref	Likarolo	Boima ba 'mele
01	Top Sub	42Kg	09	Piston	41Kg
02	Ring ea Squashing	0.2Kg	10	Nyeoe ea Piston	64Kg
03	O Ring	0.02Kg	11	Leqhetso la tataiso	2.9Kg
04	Sheba Valofo	1.3Kg	12	Retainer Ring	1.2Kg
05	Selemo	0.15Kg	13	O Ring	0.02Kg
06	Rubber Buffer	0.4Kg	14	Ring ea Squashing	0.2Kg
07	Setulo sa Valve	12.7Kg	15	Khanna Chuck	12Kg
08	Cylinder e haufi	9.1Kg	16	Drill Bit

Hobaneng u Khetha HFD's QL Series DTH Hammer?

1. Ho amohela tšepe ea boleng bo phahameng ea alloy le phekolo e thata bakeng sa likarolo ho lelefatsa bophelo ba tšebeletso ea hamore e qoelitsoeng.

2.Mohaho o bonolo, o fokotsa ho senya le ho senya pakeng tsa likarolo tse ling, tse bonolo bakeng sa tlhokomelo.

3.Adopt multiple thread ho hokahanya sub le drive chuck, e leng bonolo bakeng sa dis-assembly.

4.Adopt tsela e se nang valve ea ho fana ka khase, mohaho o bonolo, o bonolo ho Disassembly, o tsitsitseng haholoanyane.

5. Ka kapa ntle le valve e ka tlaase. Moralo oa li-valve tse ka tlase o thusa ho thibela lerōle kapa metsi ho kena hamore, haholo-holo e loketseng ho cheka seliba sa metsi kapa ho phunya lesoba le tebileng. Ha ho hlokahale valve e ka tlaase, ho qoba ho hlōleha ho bakoang ke ho robeha, ho senyeha kapa ho fetoha ha mocheso, le ho eketsa tlhahiso.

LBH:

1. Na u hlile u moetsi kapa feela khoebo khampani?

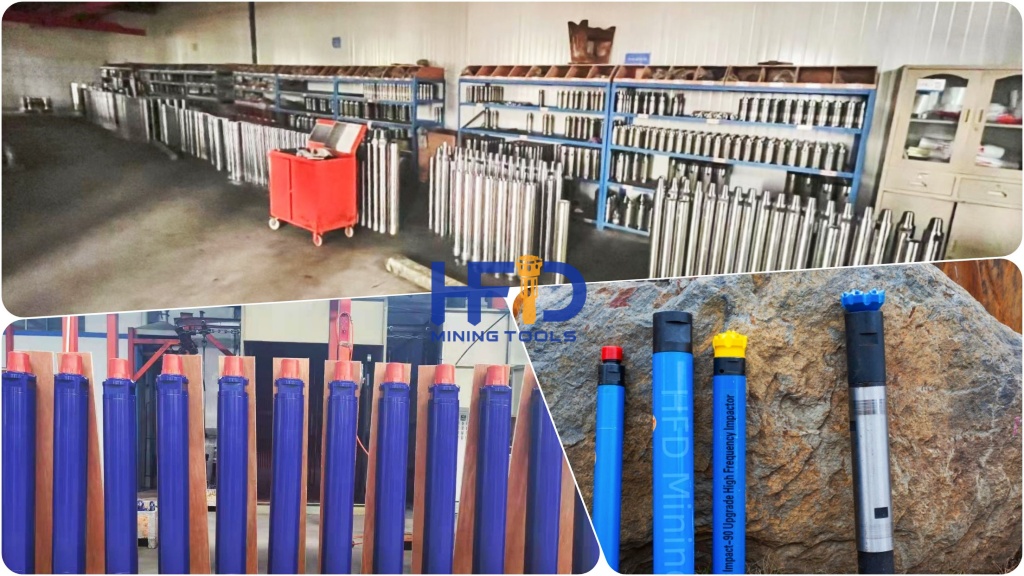

Re bobeli, re na le feme ea rona. Hape ho ba le lifeme tse ngata tsa likamano tse telele.

2.Bonyane palo ea odara ea hau ke efe?

MOQ ea rona ke 1pc kapa 1 sete e felletseng, theko e ka itšetleha ka bongata ba odara. Re amohela odara ea hau ea mohlala ho lekola boleng ba rona.

3. Ho thoe'ng ka Packing?

Ho sebelisa linyeoe tsa ply-wood le pallet bakeng sa ho romela kantle ho naha ho sireletsa lihlahisoa le ho qoba tšenyo nakong ea lipalangoang.

Hape, re ka etsa sephutheloana ho ea ka likopo tsa hau tse khethehileng.

4. Ho thoe'ng ka nako ea ho fana?

Ho itšetlehile, ka kakaretso ho nka matsatsi a 15-25. Haeba u na le li-stock, Hangata matsatsi a 5-10 feela haeba a le teng.

5. Joang ho Odara?

1).Pls mpontše hore na u batla ho phunya lesoba la mofuta ofe.
